120psi Plastic Air Diaphragm Pump Machine For Chemical Plant

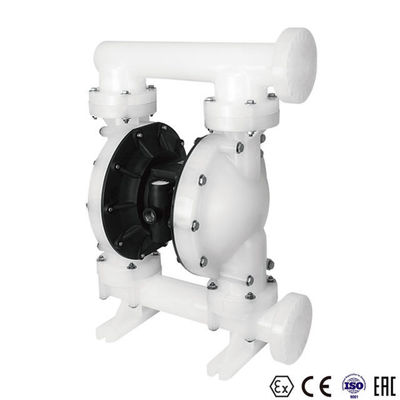

Large Image : 120psi Plastic Air Diaphragm Pump Machine For Chemical Plant

Product Details:

Place of Origin:	CHINA
Brand Name:	JBSL
Certification:	CE EX ISO EAC
Model Number:	50PP

Payment & Shipping Terms:

Minimum Order Quantity:	5
Packaging Details:	woods & carton
Delivery Time:	5-8days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	10000/mon

Contact Now

Detailed Product Description

Usage:	Chemical	Power:	Air
Pressure:	High Pressure	Fuel:	Compressed Air
Application:	Chemical	Structure:	Diaphragm Pump
Theory:	Diaphragm Pump	Standard Or Nonstandard:	Standard
Product Name:	Air Driven Diaphragm Pump	Material:	Alloy/stainless Stell/plastic
Warranty:	1 Year Warranty(except Wearing Parts)	Max Pressure:	120psi
Type:	Diaphram Air Pump	Max Flow:	600L/min
Feature:	Long Life	Dimensions(mm):	794260CM
Weight(lb):	43.1	Air Inler Size:	3/4"NPT
Wetted End:	PP/PVDF
High Light:	120psi Air Diaphragm Pump Machine , 70M/Water Air Diaphragm Pump Machine

Plastic Material Air Diaphragm Pump Machine For Chemical plant

Overview

Quick Details

Brand Name:: JBSL

Model Number:: BA50PP-PTT4-C

Place of Origin:: Guangdong, China

Application:: Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions

Power Source:: Pneumatic, Compressed air

Pressure:: 8.3 Bar

Structure:: Diaphragm Pump

Certification:: CE, ISO:9001

Standard or Nonstandard:: Standard

Theory:: Air operated diaphragm pump

Fluid inlet/outlet:: 2" Side Flange

Max Flow:: 667L/Min

Max Head:: 70M/Water

Max Self-Priming Lift(Dry):: 6.2M

Max Air Pressure:: 8.3Bar

Max Particle Diameter:: 7mm

Weight:: 26KG

Size:: 80*60*40cm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 80X60X40 cm

Single gross weight:: 36.300 kg

Package Type:: 1PCS in a paper box+operation manual

Lead Time :

Quantity(Pieces)	1 - 10	11 - 30	31 - 100	>100
Est. Time(days)	7	15	25	To be negotiated

Model No.	Pipe Size	Air side/ Fluid side Material	Seat Material	Diaphragm/Ball Material
BA50PP-PTT4-C	2 inch	Polypropylene (PP)	Polypropylene (PP)	PTFE
Product Description
JBSL is a USA family own brand which has been in AODD pumps production are for more than 28 years. With the 2 sets ceramic valve housing design, BSK pumps' spare parts are 20% less than any other exsisting brands. This design can help users save more time&money for their future maintenance. As all users know, AODD pump can be used for many industries where need fluid transferring. Waster water, oil&gas, food, beverage, powder etc. Our pumps are getting more and more comprehensive. Welcome customer visit BSK factory. We hope you can be our next users, if fate promise, maybe you can be also BSK agent.
Product Application
*	Chemical Factory	Material handling or removable barrels material ( instead of drum pumps )
*	Pharmaceutical factory	Material handling or removable barrels material ( instead of drum pumps )
*	Pharmaceutical chemical factory	Material handling or removable barrels material ( instead of drum pumps )
	Electroplating Machinery	Pumping plating material or wastewater replacement.
	Spinning factory	Delivery dye for textile/knitting production
