| Usage: | Power: | Pneumatic | |
|---|---|---|---|
| Materail: | PP | Working Air Pressure: | 6.9bar |
| Weight(lb): | 3.3KGS | Maximum Particle Size: | 2.5mm |
| High Light: | 45L/Min Air Driven Membrane Pump,6.9bar Air Driven Membrane Pump,2.5mm Air Driven Membrane Pump |
||

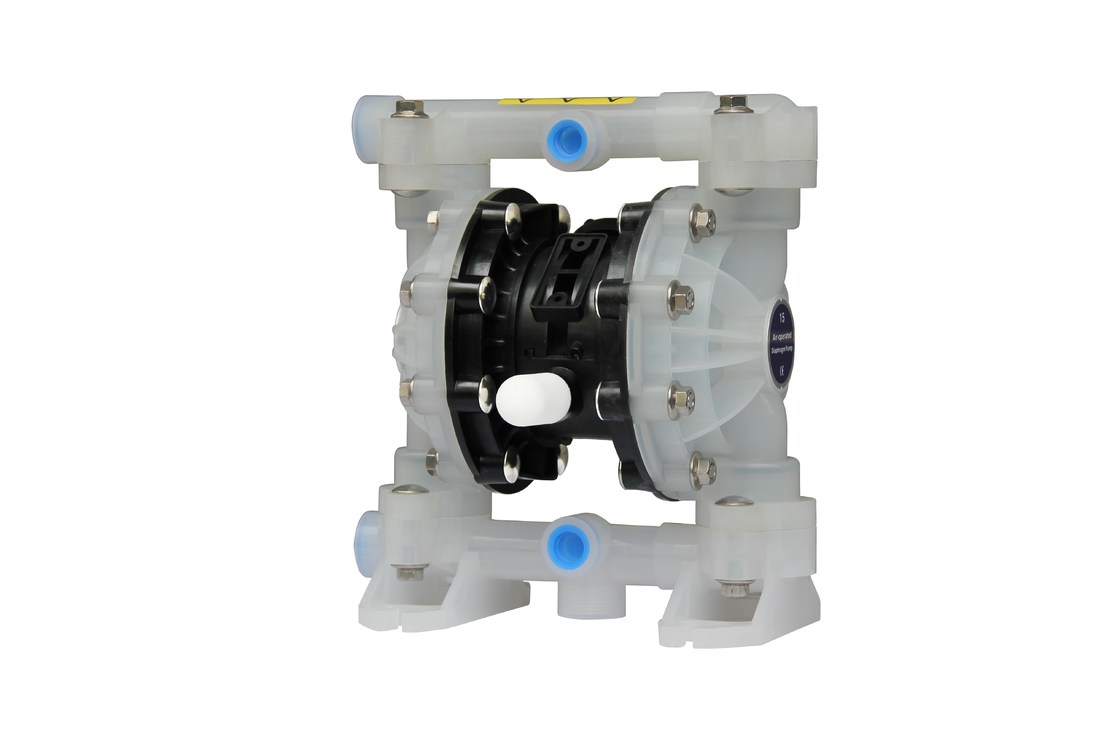

Double Air Driven Diaphragm Pump Membrane For Corrossive Liquid
Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD)or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.
Product Description:
|
Air Inlet |
1/4-18NPTF-1 |
|
Fluid Outlet |
1-11-1/2NPTF-1,Rp1-11BSP |
|
Fluid Inlet |
1-11-1/2NPTF-1,Rp1-11BSP |
|
Max. Flow |
45L/Min |
|
Max. Head |
4M |
|
Max. Self-priming Lift (dry) |
2m |
|
Max. Air Pressure6.9 |
bar |
|
Max. Particle Diameter |
3mm |
|
Max. Installation Dimension |
24.5×160.5×35mm |
|
Weight |
3.5kg |
|
Noise |
<70db |
Specifications
Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
Application
1. The pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. The pump can suck the paint, pigment, glue and adhesive etc.
3. The pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.
4. The pump can suck various grinding materials, corrosive agent and clean the oil dirt etc.
5. The pump can suck various toxin and flammable or volatility liquid etc.
6. The pump can suck various wedge water, cement slurry and mortar etc.
7. The pump can suck various strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step tranmission device of the solid and liquid separation equipment.
