| Product: | Air Double Diaphragm Pump | Material: | Casting Steel |
|---|---|---|---|
| Maximum Lift: | 70M | Maximum Particle Size: | 6MM |
| Type: | Double Acting | Feature: | Silent |
| Highlight: | pneumatic double diaphragm pump,pneumatic air pump |
||

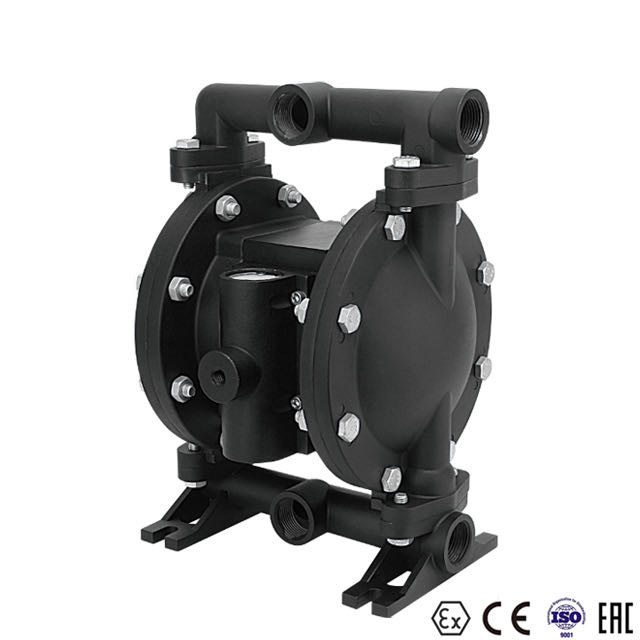

Silent Air Double Diaphragm Pump / Waste Oil Diaphragm Pump Eco Friendly
Air Driven Diaphragm Pump Description
1. Double Diaphragm Pump Air Operated Double Diaphragm Pump Rubber Diaphragm for Pump for Food& Chemical, Chemical Resistant Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.
2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.
Air Double Diaphragm Pump Parameters
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 378 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 6 |
| 6 | Weight | kg | 23 |
| 7 | Noise level | db | ＜70 |
Air Double Diaphragm Pump Application
The pump can suck various strong acid, alkali and corrosive liquid etc.
Air Double Diaphragm Pump Details
JBSL is specialized in the integration of development, design,production, sales, trade and services of diaphragm pump.we provide all kind of Pneumatic Diaphragm Pump :
