| Product: | Plastic Diaphragm Pump | Stage: | Multi Stage |
|---|---|---|---|
| Maximum Lift: | 70M | Maximum Particle Size: | 6MM |
| Application: | Transporting Water , Oil | Other Name: | AODD Pump |
| High Light: | pneumatic double diaphragm pump,pneumatic air pump |
||

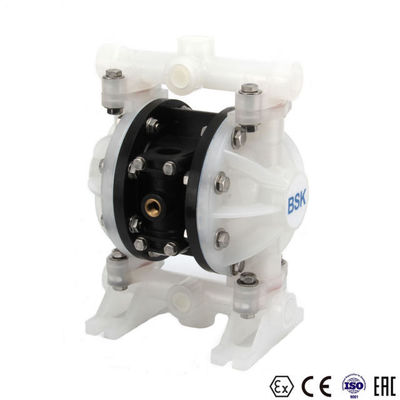

Multi Stage Pneumatic Diaphragm Pump For Transporting Water , Oil
Pneumatic Diaphragm Pump Introduction
The Pneumatic Diaphragm Pump offers high volume delivery even at low air pressure and a b road range of material compatibility options available.Refer to the model and option chart.The pump is provided with the modularized air motor and fluid section.
The air operated diaphragm pump alternately generates the intake fluid pressure and positive fluid pressure in the fluid chamber by using the pressure difference in the air chamber. The ball valve can ensure the forward flow of fluid.
Pump cycling will begin as air pressure is applied and it will continue to pump and keep up with the demand. It will build and maintain line pres -sure and will stop cycling once maximum line pressure is reached (dis -pensing device closed) and will resume pumping as needed.
Pneumatic Diaphragm Pump features
1. Iding capability,self suction,no comples control.
2 .Bolt joint design provides even sealing pressure for optimal performance.
3. Diversity of material,no rotating parts,applicable to various erosive situatons.
4. Diaphragm,ball and ball seat adopt imported materials with longer service life.
Pneumatic Diaphragm Pump Parameters
| Description | Unit | Reference Figure |
| Maximum air inlet pressure | Mpa | 0.83 |
| Maximum flow rate | L/Min | 378 |
| Maximum lift | M | 70 |
| Maximum outlet pressure | Mpa | 0.83 |
| Maximum particle size | mm | 6 |
| Weight | kg | 23 |
| Noise level | db | ＜70 |
Air diaphragm pump Specifications
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
