Product Details:
Payment & Shipping Terms:
|
| Product Name: | Air Powered Diaphragm Pump | Feature: | Lightweight |
|---|---|---|---|
| Application: | Chemical Transfer | Maximum Air Inlet Pressure: | 0.83Mpa |
| Material: | Poly | Type: | High Viscosity Diaphragm Pump |
| High Light: | pneumatic operated diaphragm pump,pneumatic double diaphragm pump |
||

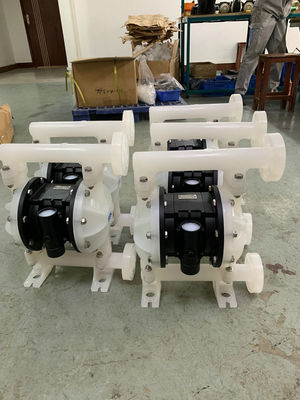

Poly Air Powered Diaphragm Pump / High Viscosity Diaphragm Pump Lightweight
Air Powered Diaphragm Pump introduction
1. Air Powered Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.
2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.
3. Air Powered Diaphragm Pump not only can transfer the flow liquid, but also can transfer some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.
Air Powered Diaphragm Pump Parameters
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 667 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 7 |
| 6 | Weight | kg | 28 |
| 7 | Noise level | db | ＜70 |
Air Powered Diaphragm Pump Specifications
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
Air Powered Diaphragm Pump Details
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C) ················································40°- 220°F (4.4°- 104°C) Nitrile················································10°- 180°F (-12°- 82°C) Viton··················································-40°- 350°F (-40°-176.6°C) Hytrel·················································-20°-150°F (-12°- 93°C) Kynar·················································10°-200°F (-28.9°- 65.5°C) Polypropylene·······································32°- 175°F (0-79.4°C)
