Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pneumatic Diaphragm Pump | Weight: | 28kg |
|---|---|---|---|
| OEM: | Yes | Feature: | Safety |
| Application: | Volatility Strong Acid | Other Name: | Air Operated Pneumatic Pump |
| Highlight: | pneumatic operated diaphragm pump,pneumatic double diaphragm pump |
||
Safety Pneumatic Diaphragm Pump For Volatility Strong Acid No Electricity
Pneumatic Diaphragm Pump Advantage:
1. No electricity. It's safe and reliable while in the flammable and explore places.
2. Pump has no rotary parts and bearing seals. The diaphragm will completely separate the exhausted medium and pump running parts, working medium. There’s no leakage, thus it doesn’t cause environmental pollution and human body safety dangerous while exhausting the toxin and flammable or corrosive medium.
3. It's convenient to use and reliable to work. This pump is simple in structure and easy to be installed and maintained.The medium conveyed doesn’t touch the matched pneumatic valve and coupling lever etc. While normal pumps’ performance will be decreased gradually because of the damages of driving parts.
4. This pump doesn’t need oil lubricant, even works in dry run.
Pneumatic Diaphragm Pump Parameters
| Description | Unit | Reference Figure |
| Maximum air inlet pressure | Mpa | 0.83 |
| Maximum flow rate | L/Min | 667 |
| Maximum lift | M | 70 |
| Maximum outlet pressure | Mpa | 0.83 |
| Maximum particle size | mm | 7 |
| Weight | kg | 28 |
| Noise level | db | ＜70 |
A 50 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar

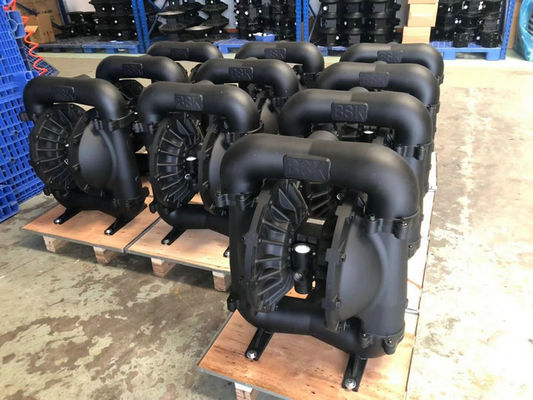

Pneumatic Diaphragm Pump Details
Pneumatic Diaphragm Pump diagram
