Product Details:
Payment & Shipping Terms:
|
| Product: | Low Pressure Diaphragm Pump | Maximum Flow Rate: | 192 1/Min |
|---|---|---|---|
| Weight: | 12.3kg | Grade: | Food Grade |
| Size: | 2 Inch Air Diaphragm Pump | Feature: | Food Grade |
| High Light: | acid diaphragm pump,air powered diaphragm pump |
||

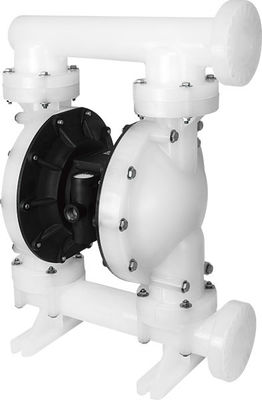

Food Grade Low Pressure Diaphragm Pump / 2 Inch Air Diaphragm Pump
Low Pressure Diaphragm Pump Introduction
Pneumatic diaphragm pump is a new type of transport device, used to transport various materials like liquid, slurry, powder, even of high viscosity, volatile, flammable, highly toxic liquid
Low Pressure Diaphragm Pump Features:
Our diaphragm pumps are of unsealed design
Anti-explosion
Suits to low cutting condition
Easy maintenance
Allow for idle load running
Light and protable
Self-absorption start-up
Multi-material option, suitable for various material
Low Pressure Diaphragm Pump Parameters
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | 1/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
1 Inch Air Diaphragm Pump Applications:
Food industry: yogurt, whipped cream , ice cream , cheese blocks , whey , beer, malt , yeast , jam , syrup, soda , juice , pudding , tomato sauce , sesame paste, peanut butter , spices , cooking oil, whey , etc.
Chemical industry : gels, facial cleanser, hand soap, shower gel, washing powder , skin care products , hair dyes, refined sesame oil , toothpaste, detergent , shampoo, shoe polish , cosmetics, fragrances , soaps, balms , glycerin , fatty acids and so on.
Pharmaceutical industry: various types of pills paste, emulsifier, syrup, nutrition , medicine , poultice , biological products, fish, pollen, royal jelly , vaccines, health care and so on.
Chemical industry: fat, solvents, resins , polymers, paints, pigments , dyes , paints, lubricants, grease , oil agent, emulsified asphalt , adhesives, plastics , explosives, glass, steel, leather and so on.
Construction industry : a variety of coatings, including interior and exterior paint , corrosion materials, ceramic coatings, paints , ceramic glazes and so on.
Other industries : plastics industry, textile industry, paper industry , coal floating agent, nano-materials, bio- chemical industry.
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ··············································· 40°- 150°F (4.4- 65.5°C)
Santoprene········································· -40°- 225°F (-40°- 107.2°C) ··················································40°- 220°F (4.4°- 104°C) Nitrile···················································10°- 180°F (-12°- 82°C) Viton····················································-40°- 350°F (-40°-176.6°C) Hytrel····················································-20°-150°F (-12°- 93°C) Kynar····················································10°-200°F (-28.9°- 65.5°C) Polypropylene··········································32°- 175°F (0-79.4°C)
1 Inch Air Diaphragm Pump diagram
Requirements for Air and Lubrication
EXCESSIVE AIR PRESSURE. Can cause pump damage, personal injury or property damage.
OPERATING INSTRUCTIONS
Maintenance
