Product Details:
Payment & Shipping Terms:
|
| Production: | Sanitary Diaphragm Pump | Maximum Outlet Pressure: | 0.83mpa |
|---|---|---|---|
| Feature: | Non Leakage | Application: | Sanitary |
| Size: | 3 Inch | Other Name: | 3 Inch Double Diaphragm Pump |
| Highlight: | pneumatic operated diaphragm pump,pneumatic air pump |
||

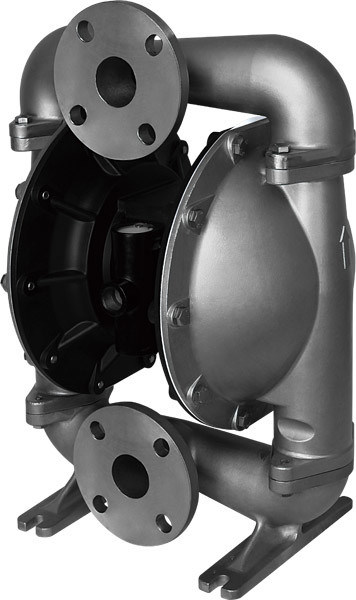

Non Leakage Sanitary Diaphragm Pump / Air 3 Inch Double Diaphragm Pump
Sanitary Diaphragm Pump Application :
·Chemical industry: acid, alkali, solvent, suspended solids, dispersion system.
·Petrochemical industry: heavy oil, grease, mud, sludge and so on.
·Coating industry: resin, solvent, coloring agent, paint and so on.
·Chemical industry: detergent, shampoo, lotion, emulsion, hand cream, surfactant.
·Ceramics industry: mud, porcelain pulp, lime slurry, clay pulp.
·Mining industry: coal slurry, magma, mud, mortar, lubricants and so on.
·Water treatment: lime slurry, soft precipitates, age, chemicals, waste water.
·Food industry: liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey.
·Beverage industry: yeast, syrup, concentrate, gas-liquid mixture, wine, fruit juice, corn pulp and so on.
·Pharmaceutical industry: solvent, acid, alkali, plant extracts, ointment and other pharmaceutical materials liquid.
·Paper industry: adhesives, resins, paints, inks, pigments, hydrogen peroxide and so on.
·Electronic industry: solvent, plating solution, cleaning solution, nitric acid, waste acid, corrosive acid, polishing liquid.
·Textile industry: dye chemicals, resins, plastics and so on.
·Construction: cement, ceramic tile adhesive, rock pulp, ceiling finish and so on.
·Automotive industry: polishing emulsion, oil, coolant, car primer, oil latex, varnish, varnish additives, degreasing liquid, paint and so on.
·Furniture industry: adhesives, varnishes, dispersions, solvents, colorants, white wood glue, epoxy resin, starch binder.
·Metallurgy, casting and dyeing industry: metal pulp, hydroxide and carbonized pulp, dust, detergent and so on.
Sanitary Diaphragm Pump Parameters
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 903 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 9 |
| 6 | Weight | kg | 103 |
| 7 | Noise level | db | ＜70 |
A 50 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ··············································· 40°- 150°F (4.4- 65.5°C)
Santoprene··········································-40°- 225°F (-40°- 107.2°C) ················································ ·40°- 220°F (4.4°- 104°C) Nitrile·················································10°- 180°F (-12°- 82°C) Viton···················································-40°- 350°F (-40°-176.6°C) Hytrel··················································-20°-150°F (-12°- 93°C) Kynar···················································10°-200°F (-28.9°- 65.5°C) Polypropylene·········································32°- 175°F (0-79.4°C)
Sanitary Diaphragm Pump Maintenance
