| Production: | Air Driven Double Diaphragm Pump | Maximum Flow Rate: | 192l/min |
|---|---|---|---|
| Weight: | 12.3kg | Maximum Particle Size: | 3mm |
| Application: | Paint Resin Pigment | Standard Or Nonstandard: | Standard |
| High Light: | air operated double diaphragm pump,twin diaphragm pump |
||

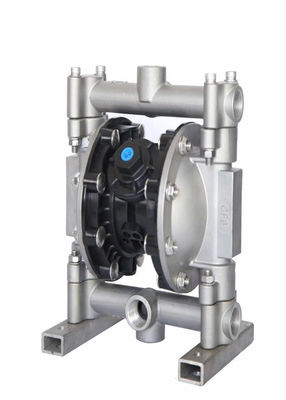

AOOD Pneumatic Air Driven Double Diaphragm Pump For Paint Resin Pigment
Air Driven Double Diaphragm Pump Introduction
This series of Air Driven Double Diaphragm Pump are made of high quality plastics or reinforced polypropylene as the pump body, with good physical properties, with F46 as diaphragm, tetrafluoro as ball, ball seat, suitable for acid, alkali and various organic solvents. Corrosive liquid, high viscosity, high viscosity, volatile, flammable, explosive, highly toxic liquid, ceramic glaze, fruit pulp, glue, oil tanker bottom oil recovery, temporary tank and so on can be exhausted and exhausted, especially to solve the problem of running, risking, dropping, leakage and not allowing empty rotation of the vane pump, which is the most popular in the country at present. A new type of pump, which uses compressed air as a power source, to distribute air through the reciprocating movement of the valve, drives the diaphragm to squeeze the conveying medium by the volume pump, which has the advantages of conveying machinery such as impurity pump, self-priming pump, mud pump, shielding pump, submersible pump and so on.
Air Driven Double Diaphragm Pump Parameters
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
Air Driven Double Diaphragm Pump Feature
Air Driven Double Diaphragm Pump Specifications
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C) ··················································40°- 220°F (4.4°- 104°C) Nitrile··················································10°- 180°F (-12°- 82°C) Viton··················································-40°- 350°F (-40°-176.6°C) Hytrel··················································-20°-150°F (-12°- 93°C) Kynar··················································10°-200°F (-28.9°- 65.5°C) Polypropylene·······································32°- 175°F (0-79.4°C)
