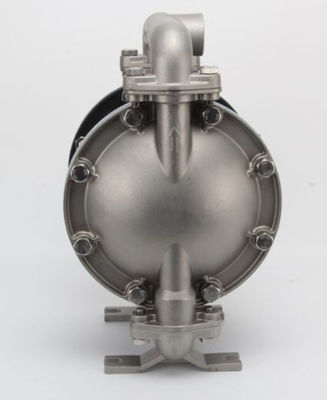

Chemical Resistant Air Driven Double Diaphragm Pump Self Priming Submerse Capability

Chemical Resistant Air Driven Double Diaphragm Pump Self Priming Submerse Capability

Pneumatic Diaphragm Pump Advantages:

• Idling ,Self-priming , Submerse capability.
• Provide stall-free, ice-free zero leak operation.
• Epoxy-coated air section for tough environmental conditions.
• Low shear force , not easy to damage the material structure.
• Bolt joint design provides even sealing pressure for optimal performance
• Modular air valve,low pulsation operation,providing smooth and rapid changeover.
• No electricity . It's safe and realiable while using in the flammable and explor place .
• Diversity of material,no rotating parts,applicable to various erosive situations.
• Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
• Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.

Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.

A 2 5 X X - X X X - X   (model selection)

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel   T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy   CI- Carbon Steel P/K –Polypropylene/Kynoar

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ···············································40°-         150°F        (4.4- 65.5°C)

Santoprene········································-40°- 225°F (-40°- 107.2°C)   ··················································40°- 220°F (4.4°- 104°C)   Nitrile·················································10°- 180°F (-12°- 82°C)   Viton··················································-40°- 350°F (-40°-176.6°C)   Hytrel·················································-20°-150°F (-12°- 93°C)   Kynar··················································10°-200°F (-28.9°- 65.5°C)   Polypropylene·······································32°- 175°F (0-79.4°C)

1”  Flow diagram
