Product Details:
Payment & Shipping Terms:
|
| Product: | Air Operated Diaphragm Pump | Maximum Outlet Pressure: | 0.83 Mpa |
|---|---|---|---|
| Temperature Limits: | -2°- 105°F | Noise Level: | ＜70db |
| Materail: | PP | Fuel: | Air Operated |
| Structure: | Diaphragm Pump | Application: | Chemical |
| Warranty: | 1 Year Warranty(except Wearing Parts) | Size: | 1/2" |
| Flow Rate: | 45L/min | ||
| High Light: | Portable Dual Diaphragm Pump,Dual Diaphragm Pump 1/2",Air Operated Double Diaphragm Pump |
||

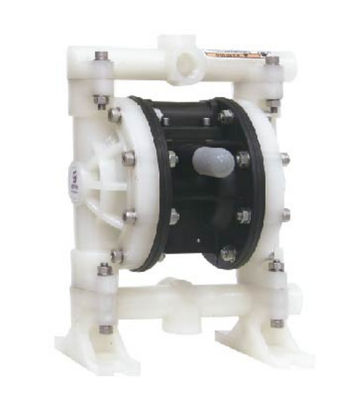

Portable Dual Diaphragm Pump 1/2" Air Operated Double Diaphragm Pump
Portable Air Powered Dual Diaphragm Pump Non Leakage For Printing
Specifications
Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.
Technical specification of 1/2 "plastic pump
Product Name: 1/2 "plastic pneumatic diaphragm pump
Scale: 1:1
Larger flow: 45l/min
Displacement per cycle: 2.54l
Air inlet: 1/2-14 n.p.t.f-1
Fluid inlet: 1/2 "a.n.s.i BSP
Fluid outlet: 1/2 "a.n.s.i BSP
Greater working pressure: 0.69mpa
Allowable larger particle diameter: 4mm
Weight: 2.8kg
Larger dry suction height: 4.M
Noise level: MPa c.p.m dB (a) 60
A 1 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C) ·················································40°- 220°F (4.4°- 104°C) Nitrile···················································10°- 180°F (-12°- 82°C) Viton······················································-40°- 350°F (-40°-176.6°C) Hytrel·····················································-20°-150°F (-12°- 93°C) Kynar······················································10°-200°F (-28.9°- 65.5°C) Polypropylene···········································32°- 175°F (0-79.4°C)
Product Usage
1. Pump peanut butter, kimchi, mashed potatoes, small red sausage, jam apple pulp, chocolate, etc.
2. Pumping paint, gum, and pigment.
3, adhesives and glue, all types can be pumped.
4, a variety of tiles, porcelain, bricks and pottery glaze.
5. After the oil well is drilled, pump the sediment and grout.
6. Pump various emulsions and fillers.
7. Pumping all kinds of age.
8. Use the pump as the tanker, and the barge clears the tank to absorb the age.
9, hops and fermented powder slurry, syrup, sugar dense.
10. Pumping water from mines, tunnels, tunnels, beneficiation, and slag. Pumping cement grout and mortar.
11, a variety of rubber pulp.
12. Various abrasives, corrosives, petroleum and mud, cleaning grease and general containers.
13, a variety of highly toxic, flammable, volatile liquids.
14, a variety of strong acid, alkali, strong corrosive liquid.
15, a variety of high temperature liquids can withstand 150 ° C.
16. As a pre-stage pressure supply device for various solid-liquid separation devices
1” Flow diagram
Main uses of diaphragm pump:
Coating industry: pumping various paints, gums, pigments, coatings, etc.
Adhesives and glues: all kinds can be pumped.
Ceramic industry: pump all kinds of tiles, porcelain, brick and ceramic glaze.
Mining industry: after the oil well is drilled, the sediment and grouting are pumped. Pump the accumulated water in mines, tunnels, mineral processing and slag. Pump cement grouting and mortar.
Chemical industry: pumping various emulsions and fillers, various rubber slurries, various abrasives, corrosive agents, petroleum and mud, cleaning oil dirt and general containers, various highly toxic, flammable, volatile liquids, various strong acids, strong alkalis, strong corrosive liquids, etc.
Environmental protection and wastewater treatment industry: pumping various sewage and supporting plate and frame filter press.
Shipping industry: pumps are used for oil tankers, and barges are used to clear the warehouse and take the sewage from the warehouse.
Pump various high-temperature liquids up to 150 ℃
Food industry: pumping peanut butter, pickles, mashed potatoes, small red sausage, jam apple juice, chocolate, essence raw materials, hops and fermentation powder slurry, syrup, sugar paste, etc
