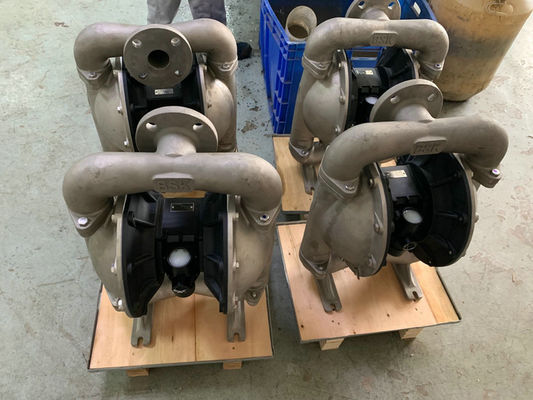

Liquid Transportation Pneumatic Diaphragm Pump Compressed Air Powered
Pneumatic Diaphragm Pump Feature
1. Precision casting, smooth surface and good appearance.
2. Three section manifold, Flexible installation.
3. Four bolts connection design, good seal.
4. High roundness valve ball, good dry suction and low air consumption.
Pneumatic Diaphragm Pump Application
High viscosity liquid high pressure transmission
Large solid particle transmission
Abrasive medium
dangerous and flammable liquid
Clean room liquid
Pneumatic Diaphragm Pump Parameters
| Description | Unit | Reference Figure |
| Maximum air inlet pressure | Mpa | 0.83 |
| Maximum flow rate | L/Min | 903 |
| Maximum lift | M | 70 |
| Maximum outlet pressure | Mpa | 0.83 |
| Maximum particle size | mm | 9 |
| Weight | kg | 103 |
| Noise level | db | ＜70 |
Pneumatic Diaphragm Pump Delivery
A 80 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C) ················································40°- 220°F (4.4°- 104°C) Nitrile················································10°- 180°F (-12°- 82°C) Viton·················································-40°- 350°F (-40°-176.6°C) Hytrel·················································-20°-150°F (-12°- 93°C) Kynar·················································10°-200°F (-28.9°- 65.5°C) Polypropylene·······································32°- 175°F (0-79.4°C)
3" Flow diagram
