| Product Name: | AODD Pump | Power: | Air Powered |
|---|---|---|---|
| Suitable: | Battery Slurry Transporting | Maximum Lift: | 70m |
| Other Name: | Air Operated Pneumatic Pump | Advantage: | Zero Leak |
| Highlight: | air operated double diaphragm aodd pumps,marine diaphragm pump |
||

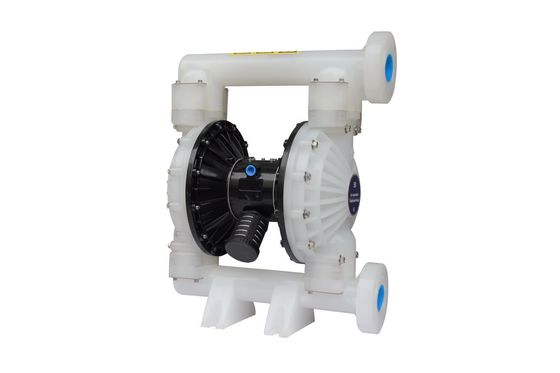

Air Powered Double AODD Pump For Battery Slurry Transporting Zero Leak
AODD Pump Application
• Sauces, Purees & Beverages
• Poultry, Fish & Meat process
• Dairy
• Prepared Foods
• Fruits, Vegetables & Condiments
• Bio-pharmaceutical
• Pharmaceutical products
• Health & personal care
• Confectionary
• Chromatography, Separation, Purification
• High Purity product transfer
• Filter press feed pumps
• Process Support
• Acids, Solvents, Caustics & Alcohol
• Abrasive media & Solids
• Chemical injections & Metering
• Waste water transfer
Air Double Diaphragm Pump Parameter
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | 1/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene··········································-40°- 225°F (-40°- 107.2°C) ··················································40°- 220°F (4.4°- 104°C) Nitrile····················································10°- 180°F (-12°- 82°C) Viton·····················································-40°- 350°F (-40°-176.6°C) Hytrel·····················································-20°-150°F (-12°- 93°C) Kynar·····················································10°-200°F (-28.9°- 65.5°C) Polypropylene············································32°- 175°F (0-79.4°C)
OPERATING INSTRUCTIONS
AODD Pump Application
