Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pneumatic Diaphragm Pump | Feature: | Self Priming |
|---|---|---|---|
| Maximum Lift: | 70m | Feature: | No Irrigation Water |
| Max Flow: | 903lpm/m | ||
| Highlight: | pneumatic operated diaphragm pump,pneumatic air pump |
||

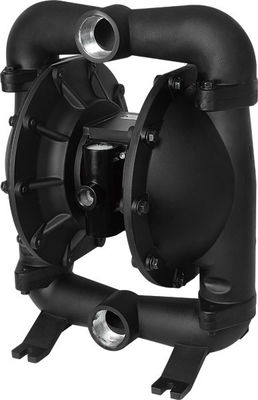

No Irrigation Water Pneumatic Diaphragm Pump For Sauces Purees & Beverages
Pneumatic Diaphragm Pump Application
1. Pump peanut butter, pickle, mashed potato, small red sausage, jam, apple sauce, chocolate, etc.
2. Pump paint, gum and pigment.
3. Adhesive and glue, all kinds can be absorbed by pump.
4. Various tiles, porcelain, brick ware and ceramic glaze paste.
5. After the well is drilled, pump the sediment and grouting.
6. Pump various emulsions and fillers.
7. Pump various kinds of age.
8. Use the pump to clean the cabin of cruise barge and absorb the age in the cabin.
9. Hops, fermentation powder, syrup, sugar rice.
10. Water accumulation in mines, tunnels, tunnels, ore dressing and slag.Pump cement grouting and Mortar.
11. Various rubber slurry.
12. Various abrasives, etchants, petroleum and mud, cleaning oil and general containers.
13. All kinds of highly toxic, flammable and volatile liquids.
14. All kinds of strong alkali, strong acid, strong corrosion and other liquids.
15. All kinds of high temperature liquid, maximum resistance to 150 ° C.
Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 903 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 9 |
| 6 | Weight | kg | 103 |
| 7 | Noise level | db | ＜70 |
Specifications
Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
A 80 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C) ·················································40°- 220°F (4.4°- 104°C) Nitrile··················································10°- 180°F (-12°- 82°C) Viton···················································-40°- 350°F (-40°-176.6°C) Hytrel··················································-20°-150°F (-12°- 93°C) Kynar··················································10°-200°F (-28.9°- 65.5°C)
Polypropylene·······································32°- 175°F (0-79.4°C)
