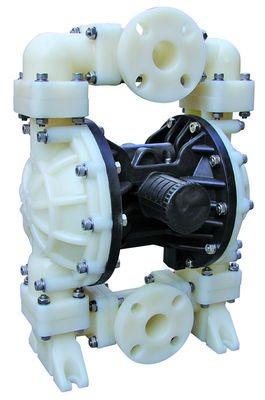

Pneumatic Plastic Chemical Diaphragm Pump Membrane With 135L/Min
The diaphragm pump offers high volume delivery even at low air pressure and a b road range of material compatibility options available.Refer to the model and option chart.The pump is provided with the modularized air motor and fluid section.
The air operated diaphragm pump alternately generates the intake fluid pressure and positive fluid pressure in the fluid chamber by using the pressure difference in the air chamber. The ball valve can ensure the forward flow of fluid.
Pump cycling will begin as air pressure is applied and it will continue to pump and keep up with the demand. It will build and maintain line pres -sure and will stop cycling once maximum line pressure is reached (dis -pensing device closed) and will resume pumping as needed.
Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
Specifications
Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
Application
1, Poisonous, combustible and volatilizable liquids.
2, Strong acid, strong alkali liquids with corrosion
3, Tanker truck, bilk plant, load and unload of oil products
4, Pickle, fruit pulp, mashed potatoes, chocolates, etc
5, Paint, rubber, pigment and adhesives
6, Various ceramic pulp, grouting, mortar and slurry
7, Various latex, organic solvents, stuffing
8, Stripping of oil carrier (pump dirty water and residual oil)
9, Common hop, thin paste of yeast power, syrup and molasses
10, Special liquid
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·······································-40°- 225°F (-40°- 107.2°C) ···············································40°- 220°F (4.4°- 104°C) Nitrile··············································10°- 180°F (-12°- 82°C) Viton···············································-40°- 350°F (-40°-176.6°C) Hytrel··············································-20°-150°F (-12°- 93°C) Kynar··············································10°-200°F (-28.9°- 65.5°C) Polypropylene····································32°- 175°F (0-79.4°C)
